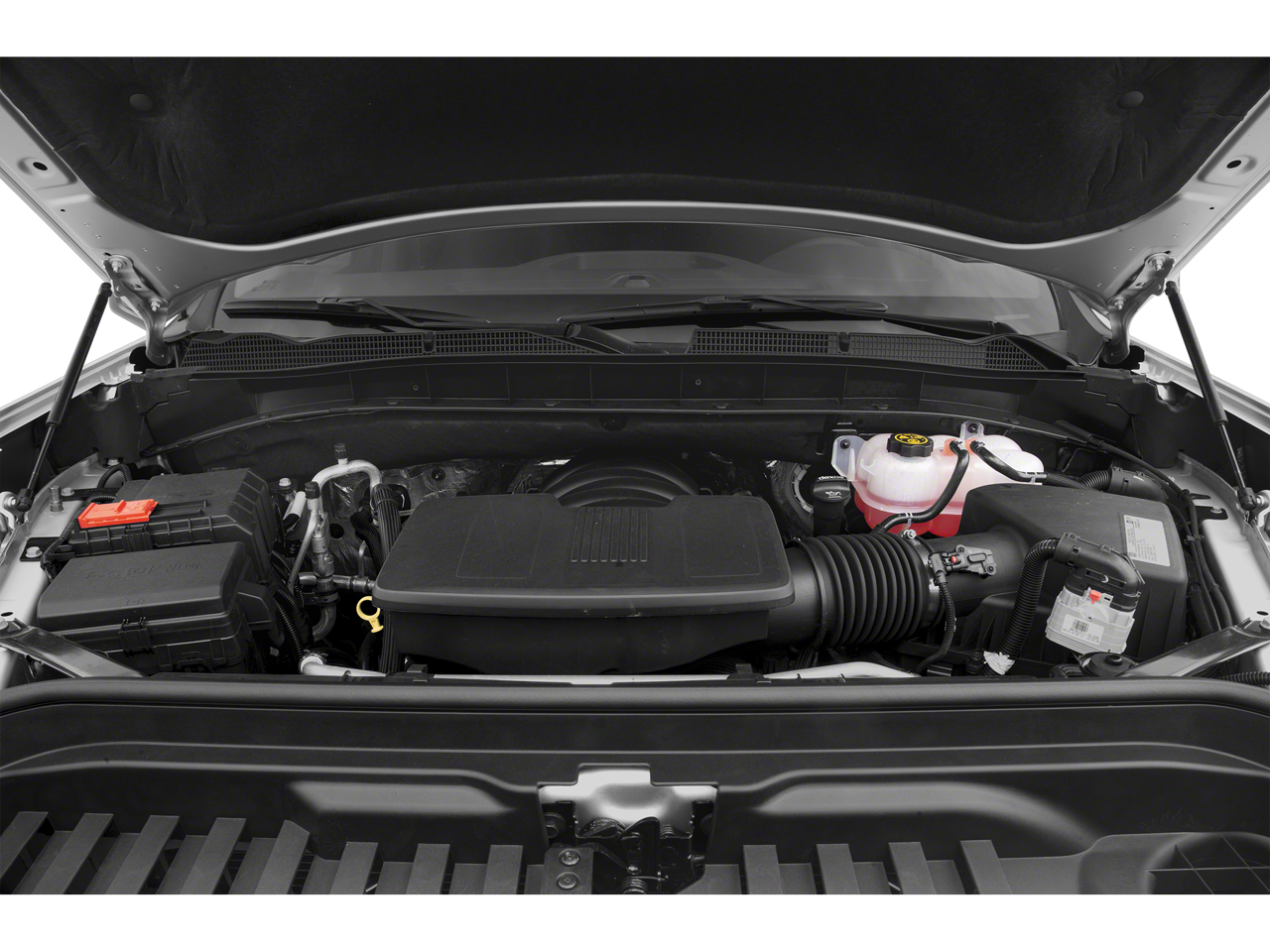

ENGINE, 5.3L ECOTEC3 V8

• (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm); featuring available Dynamic Fuel Management that enables the engine to operate in 17 different patterns between 2 and 8 cylinders
• depending on demand
• to optimize power delivery and efficiency

• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Bluetooth® for phone connectivity to vehicle infotainment system

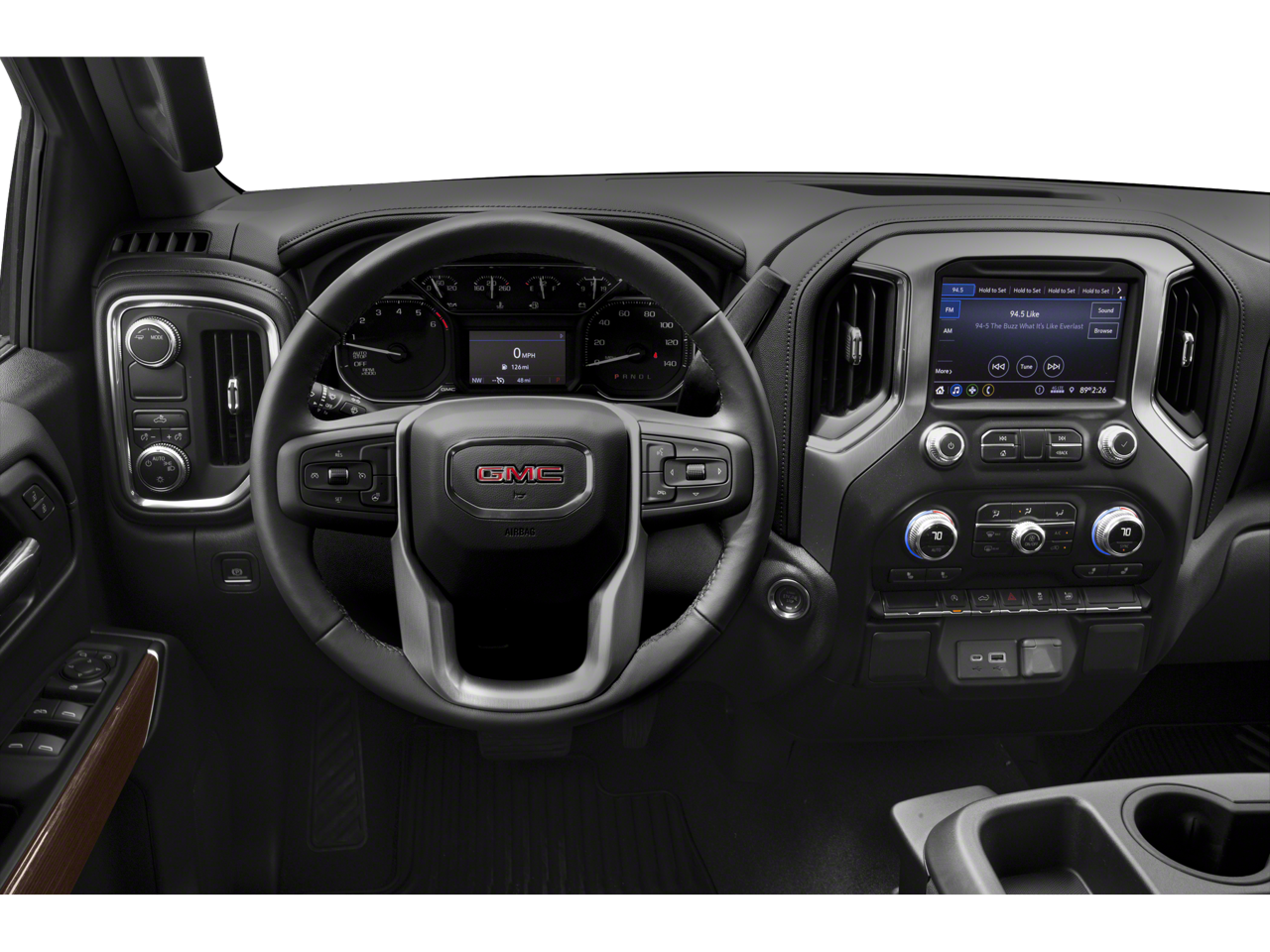

• Steering wheel audio controls
• Audio system

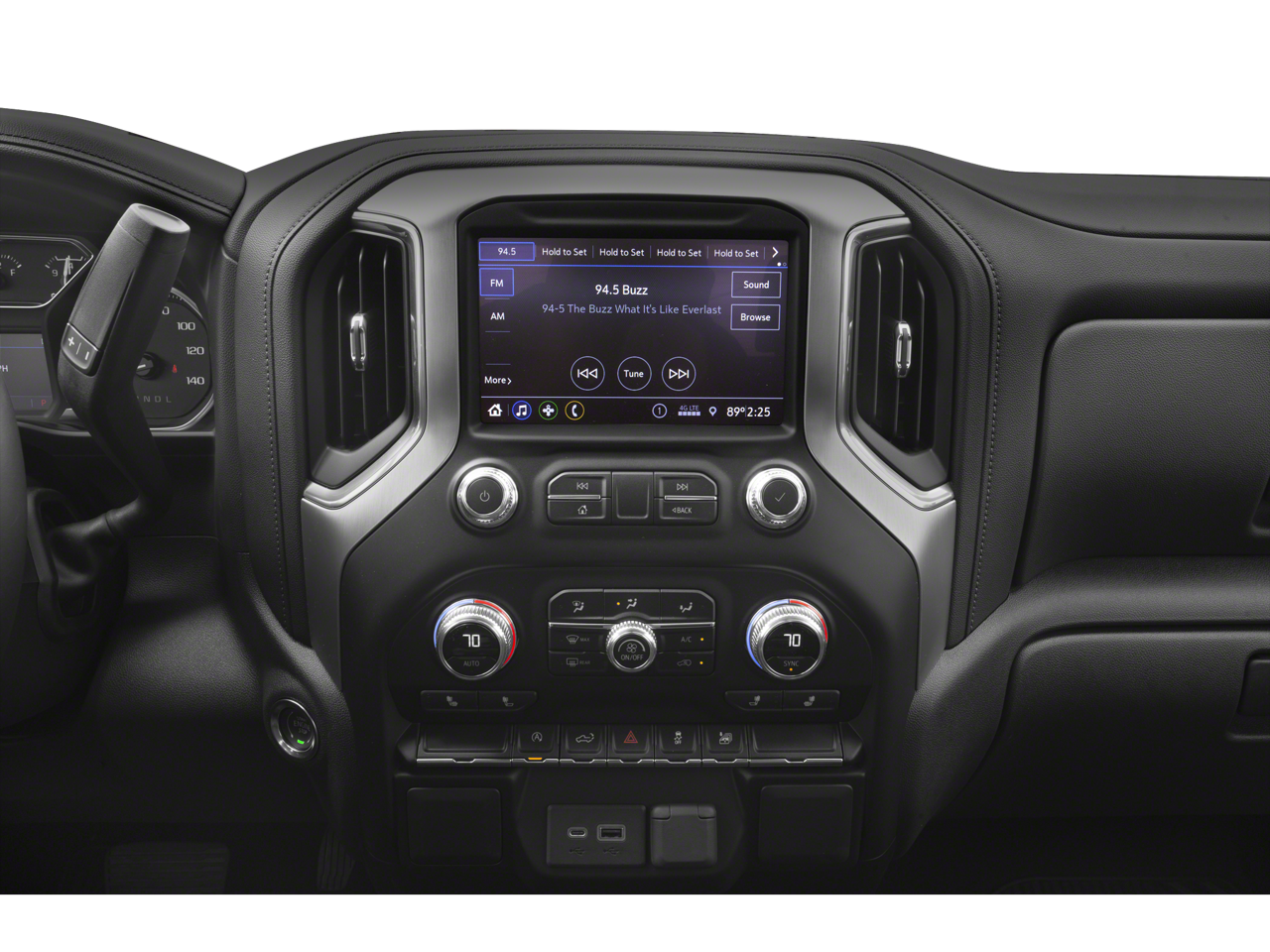

• GMC Infotainment System with 8 diagonal color touch-screen
• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature
• 6-speaker system
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front chrome lower
• Headlamps
• LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
• Tailgate
• GMC MultiPro Tailgate with six functional load/access features
• Lamps
• cargo area
• cab mounted integrated with center high mount stop lamp
• with switch in bank on left side of steering wheel
• Tailgate
• gate function manual with EZ Lift includes power lock and release
• includes hitch area light
• Mirror caps
• chrome (Requires (DLF) outside heated power adjustable mirrors.)
• CornerStep
• rear bumper
• Wheels
• 17 x 8 (43.2 cm x 20.3 cm) 6-spoke Bright Silver painted aluminum
• Door handles
• body-color
• Glass
• deep-tinted
• Taillamps
• LED tail and stop light with incandescent reverse light
• Bumper
• rear chrome with bumper CornerSteps
• Wheel
• 17 x 8 (43.2 cm x 20.3 cm) full-size
• steel spare
• Tire
• spare 255/70R17 all-season
• blackwall (Included with (QBN) 255/70R17 all-season
• blackwall tires.)
• Mirrors
• outside heated power-adjustable
• Tailgate and bed rail protection caps
• top
• Tires
• 255/70R17 all-season
• blackwall
• Grille (Chrome surround with high gloss Black mesh and Chrome inserts.)
• LED Cargo Area Lighting located in cargo bed activated with switch on center switch bank or key fob (Deleted with (RG4) Fleet Delete Base Content Package.)
• Wheelhouse liners
• rear (Deleted with (RG4) Fleet Delete Base Content Package.)
• Moldings
• window surround
• Chrome

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1976
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 890
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2100
• Maximum Trailering Capacity (lbs): 10900
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50
• Shock Absorber Diameter - Rear (mm): 50
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.72
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.51
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.09
• Ground Clearance, Rear (in): 8.09
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
