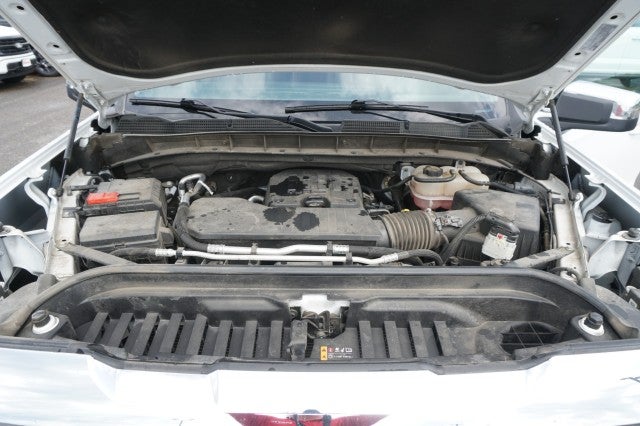

ENGINE, TURBOMAX

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (Includes (KW5) 220-amp alternator and (MFC) 8-speed automatic transmission. (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -

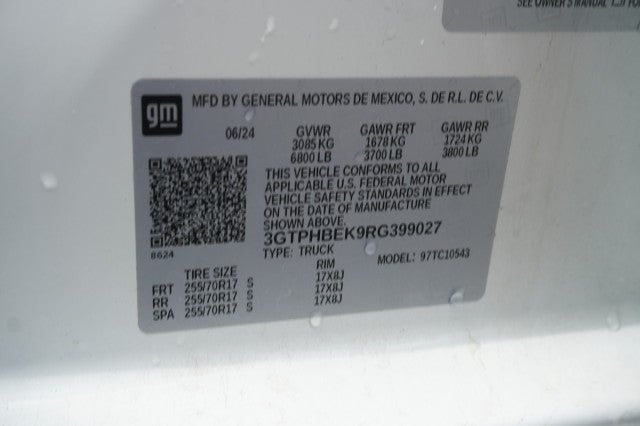

• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2719
• Curb Weight - Rear (lbs): 1894
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 910
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2275
• Maximum Trailering Capacity (lbs): 13100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3700
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): 3700
• Rear Tire Capacity (lbs): 3800
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.92
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.49
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.89
• Ground Clearance, Rear (in): 7.89

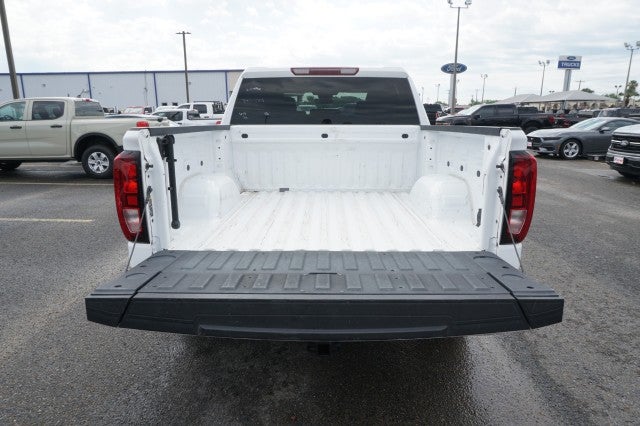

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -

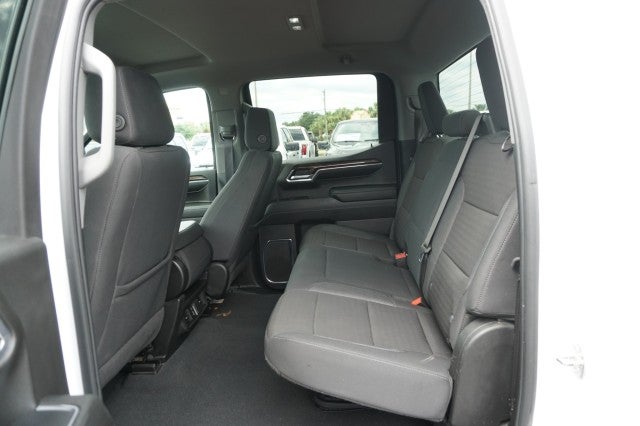

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

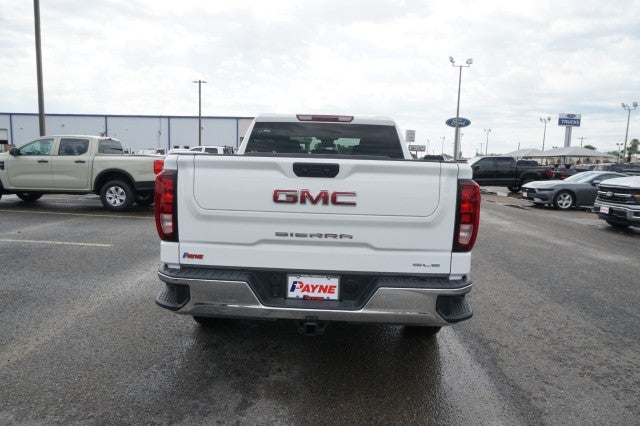

• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
